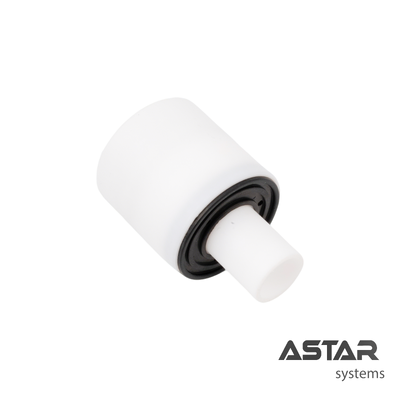

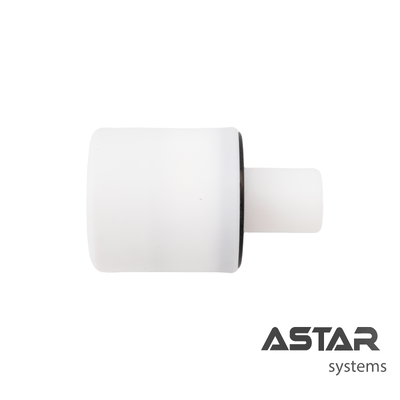

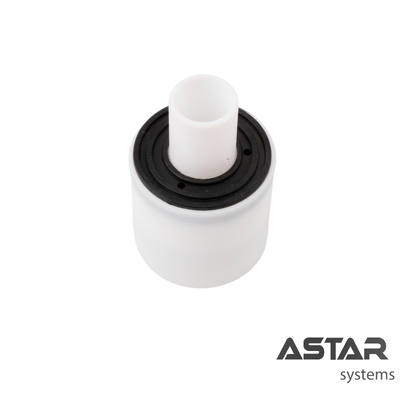

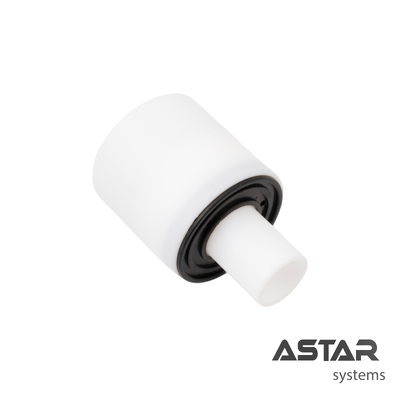

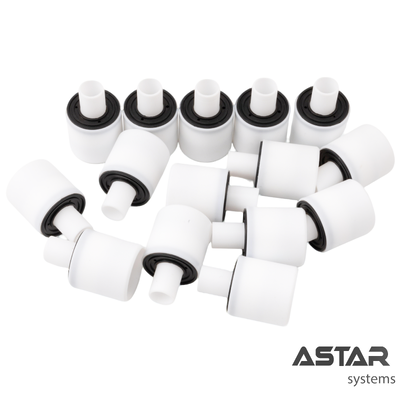

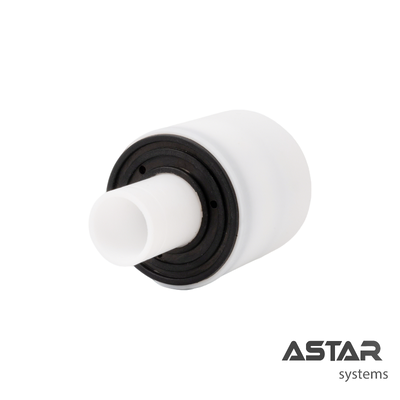

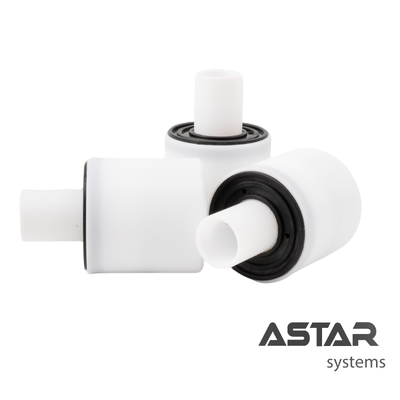

1009429 Fixation Piece NF28-E for GM03 GA03 Powder Coating Gun Nozzle Combinations
Engineered for superior performance and operational efficiency in industrial powder coating applications,
this manual powder gun delivers exceptional results with minimal maintenance requirements.
Product Overview
Designed with minimal replacement parts for easy cleaning and simple maintenance, this powder coating gun
reduces operational costs while ensuring reliability and long service life. The system features an extendable
body design with tube and click connections for versatile applications.
Applications
This compact powder gun incorporates advanced powder coating technology, offering high performance for
machine, reciprocator, or robot-mounted applications. Its lightweight design minimizes energy consumption
while maintaining optimal performance.
Technical Specifications
| Product Name |
Fixation piece |
| Brand |
ASTAR |
| Size |
Standard |
| Company Capability |
Independently Produced |
| Usage |
Powder Coating |
Nozzle Combinations for GA03 / GM03-E
| Item |
Description |
Part Number |
| 1 |
Flat jet nozzle NF28-E - complete |
1009 430# |
| 2 |
Fixation piece NF28-E - complete |
1009 429# |
| 3 |
Flat jet nozzle set (without pos. 5.1) |
404 225# |
| 4 |
Contact ring |
318 760# |
| 5 |
Electrode holder - complete (ETFE) |
404 209# |
| 5.1 |
Electrode holder - complete (PTFE) |
406 058# |
| 6 |
Flat jet nozzle |
404 128# |
| 7 |
Threaded sleeve PU04-E-NF - complete |
405 728 |
| 10 |
Round jet nozzle NS11-E - complete |
1009 440# |
| 11 |
Deflector rod NS11-E - complete |
1002 249# |
| 12 |
Muzzle NS11-E - complete |
1009 439# |
| 13 |
Threaded sleeve PU04-E-NS - complete |
405 736 |
| 14 |
Deflector - Ø 15 mm |
400 262# |
| 14.1 |
Deflector - Ø 24 mm |
400 181# |
| 14.2 |
Deflector - Ø 28 mm |
400 254# |
| 14.3 |
Deflector - Ø 32 mm |
400 238# |
| 14.4 |
Deflector - Ø 50 mm |
400 246# |
| 20 |
Extension PE08-E-150 - complete, 150 mm |
1010 501# |
| 20.1 |
Extension PE08-E-300 - complete, 300 mm |
1010 502# |
Product Images
Key Advantages
- Premium materials and reliable technology
- Sturdy construction for extended service life
- Excellent quality with competitive pricing
- Easy installation and maintenance
Packaging
Paper box packaging for secure transportation and storage.
